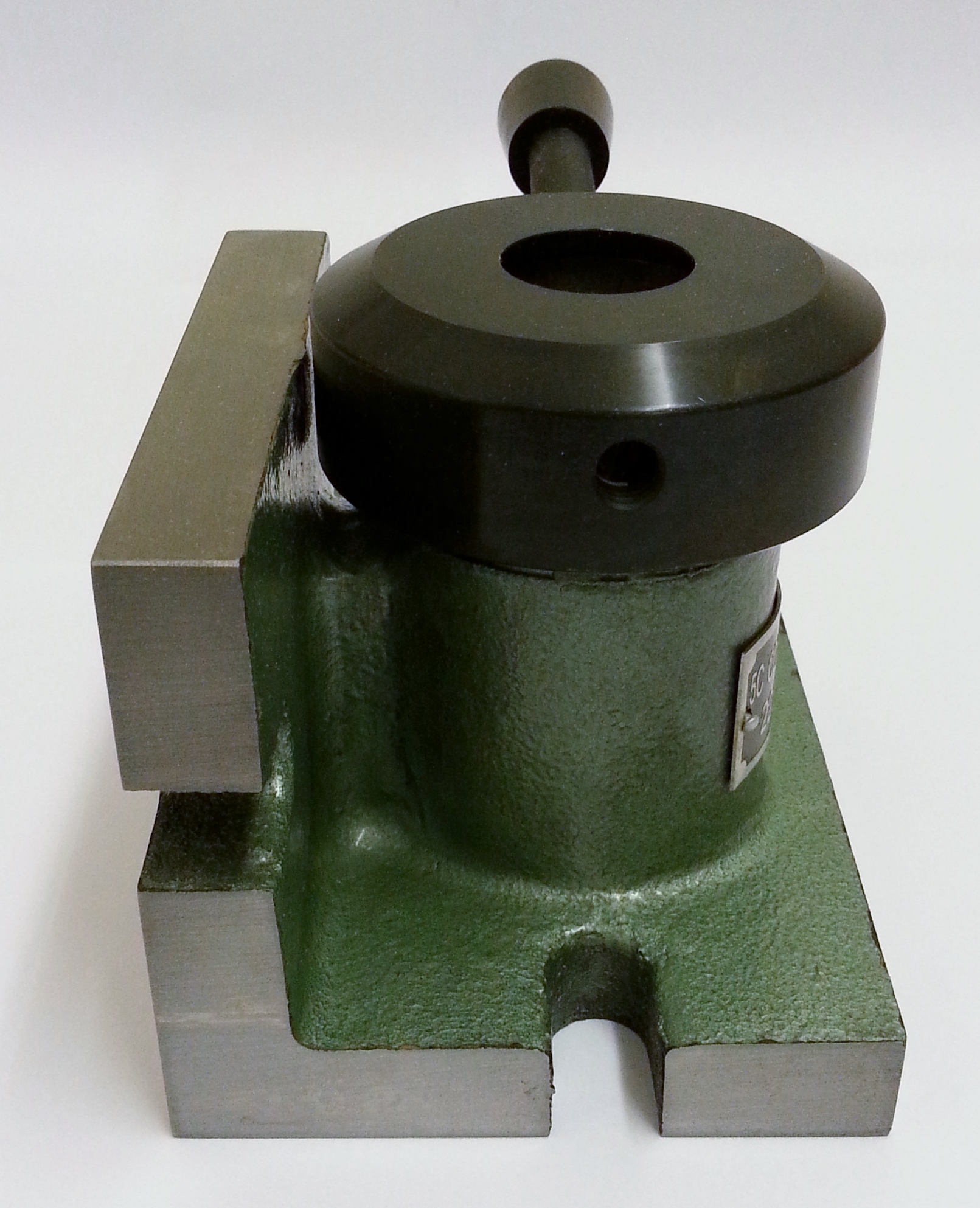

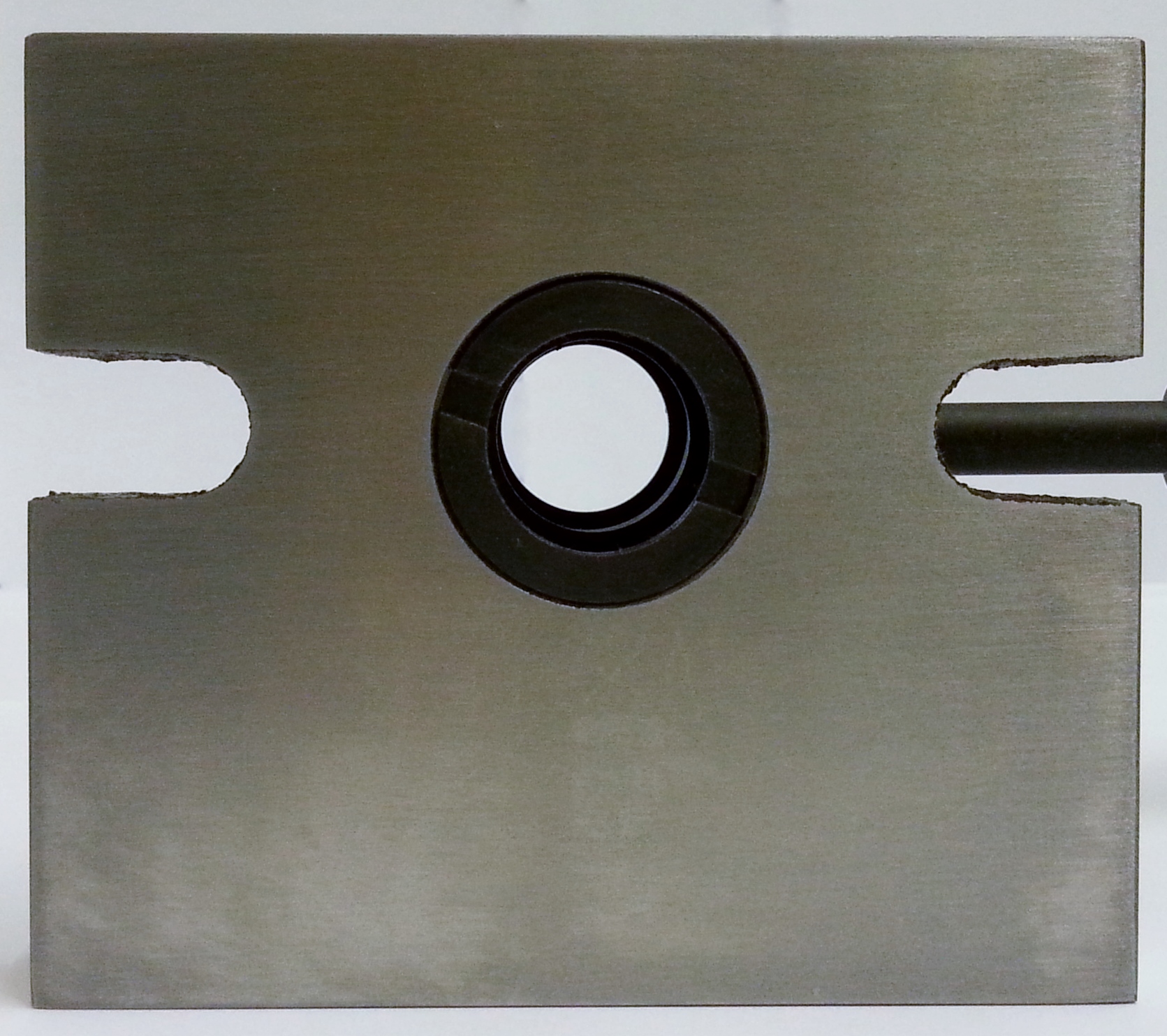

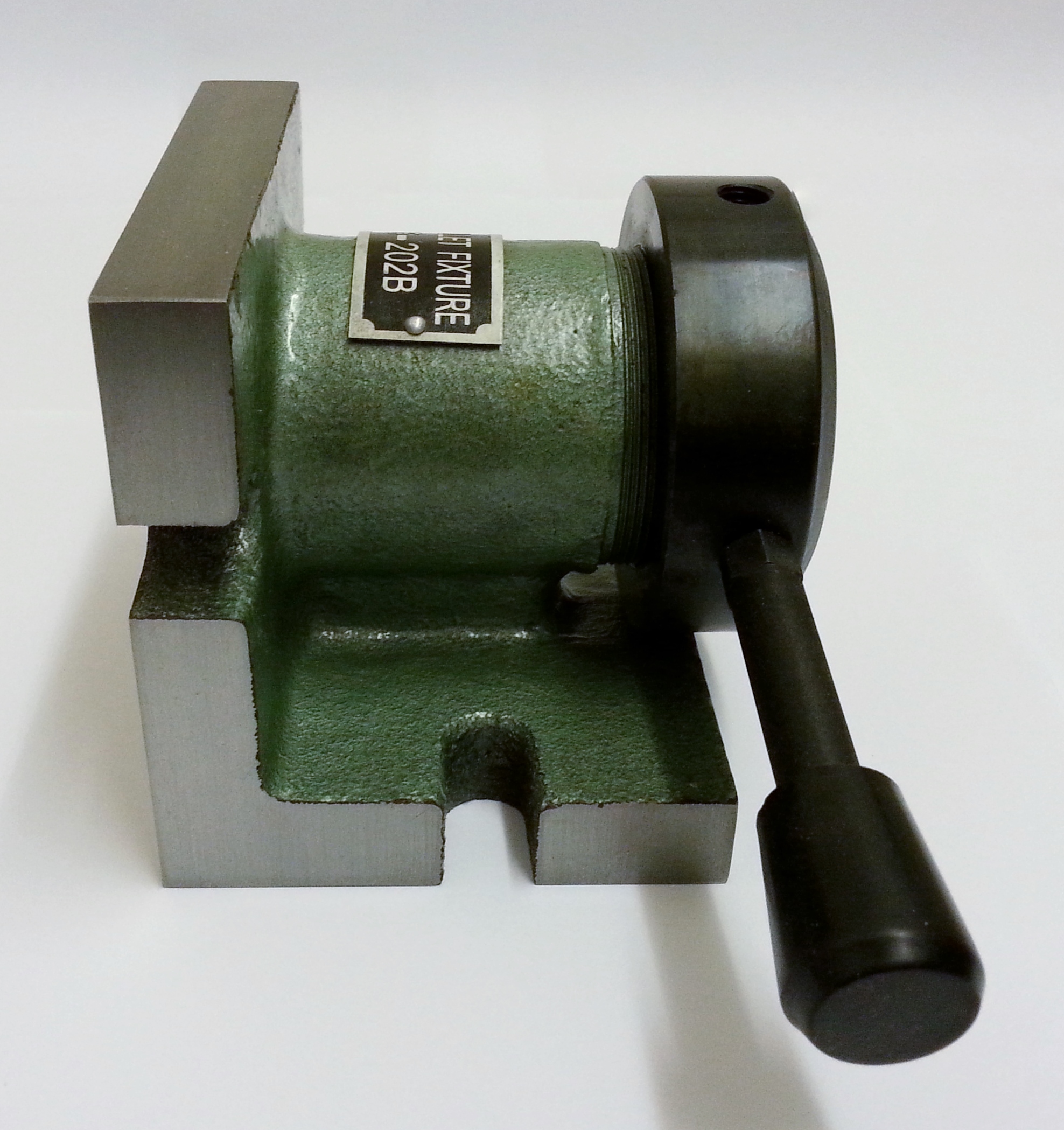

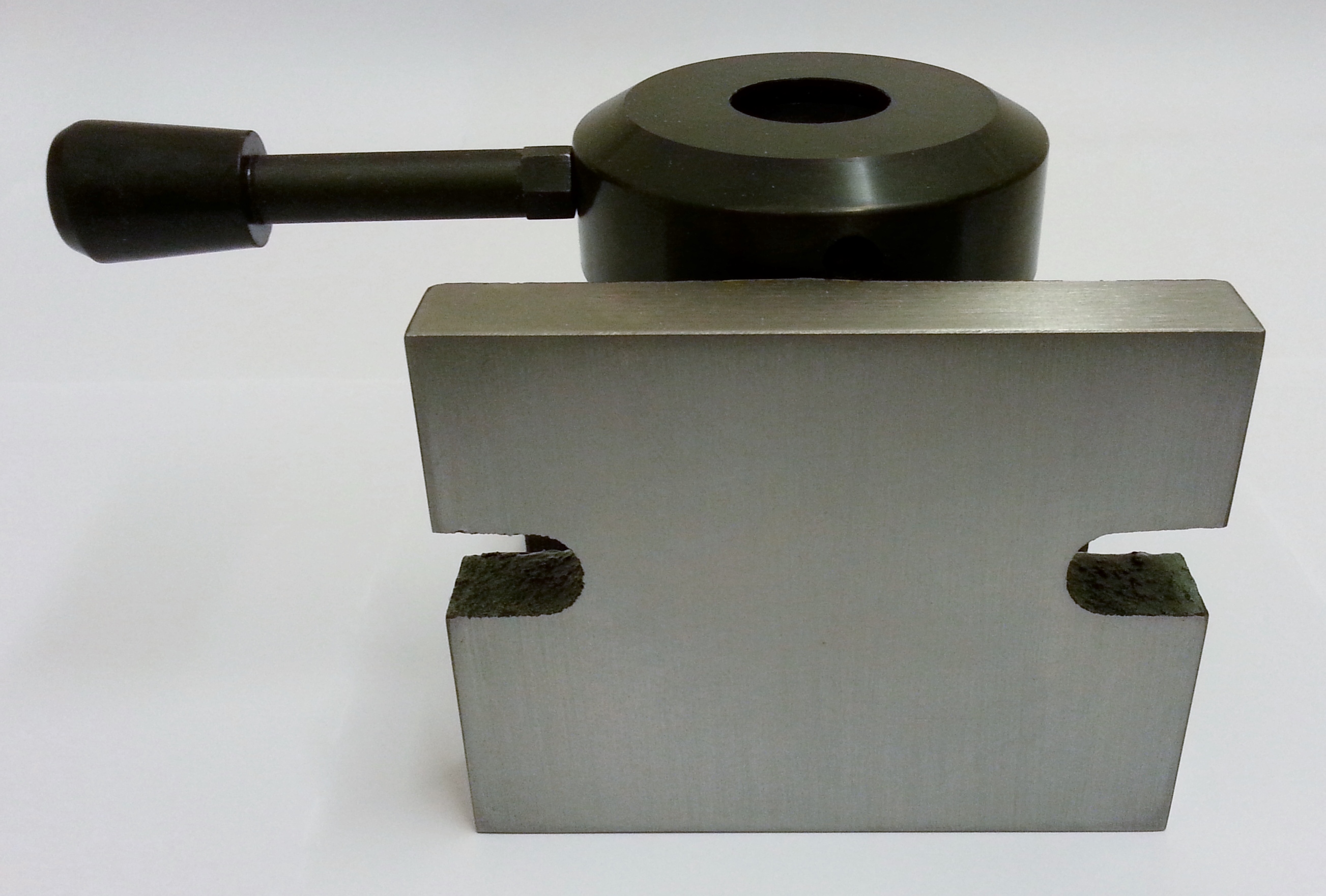

Amadeal 5C Collet Fixture Type B

Amadeal 5C Collet Fixture Type B

Click for large image

Ref: AMA-AC-235-6095TD

in stock.

For Horizontal or Vertical use with threaded or un-threaded 5C collets.

Base Size: 127 x 110mm

Height (to top of Ring): 115mm

Centre Height (when used horizontally): 64mm

Closure Type: Screwed Ring

Parallelism of spindle centre line to base surface: 0.020mm
Squareness of spindle centre line to base surface: 0.020mm

£64.00

Quantity:
