AMA280VFF Bench Lathe (11x27) Var.spd - Power Crossfeed

Ref: 6

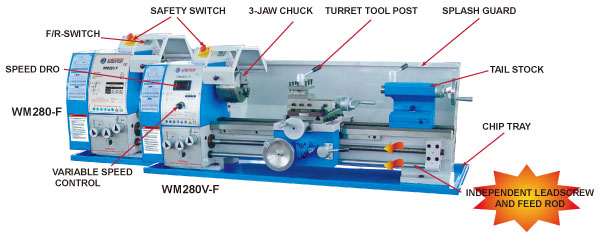

The AMA280VFF bench lathe

Now with inverter drive AC induction motor

FEATURES:
Most useful, heavy duty homeshop lathe.
V-way bed is hardened and precision ground.
Super width bedway gives greater capacity.
Spindle is supported by precision tapered roller bearing.
Automatic feed and threading are fully interlocked.
T-slotted cross slide.
Adjustable gibs for slideways.
Top design of gearbox for improved function.
Cuts right and left hand threads.
Tailstock may be offset for turning tapers.
A reversing switch is included for added versatility.
Equipped with high quality belt and control board.
Tolerance test certificate, test flow chart included.
With powered cross feed

SPECIFICATION:
Model No.
Distance between centers 700mm
Swing over bed 280mm
Swing over cross slide 165mm
Taper of spindle bore MT4
Spindle bore 26mm
Number of spindle speeds Variable
Range of spindle speeds 50~2000rpm
Range of cross feeds 0.02~0.28mm/r
Range of longitudinal feeds 0.07-0.20mm/r
Range of inch threads 8-56T.P.I
Range of metric threads 0.2-3.5mm
Top Slide travel 50mm
Cross slide travel 140mm
Tailstock quill travel 80mm
Taper of tailstock quill MT2
Motor 1.1KW Frequency Inverter Motor
Packing size 1400 x 700 x 680mm
Net weight 210kgs

STANDARD ACCESSORIES:

Splash guard 1pc
Chip tray 1pc
Toolbox&tools 1set
Speed counter

OPTIONAL ACCESSORIES:
Four-jaw chuck
Backplate
Follow rest
Steady rest
Face plate
ER25 Collet chuck
Collet holder
Turning tool
Quick change tool post
Stand


Price: 2,107.75 (Including VAT at 20%)

Quantity:

Additional items you may need


Lathe Tools - 11 piece Brazed on Carbide 12mm - £27.00

Face Plate - £22

Fixed Steady - £25

Travelling Steady - £23

Tailstock Chuck - £15
